High

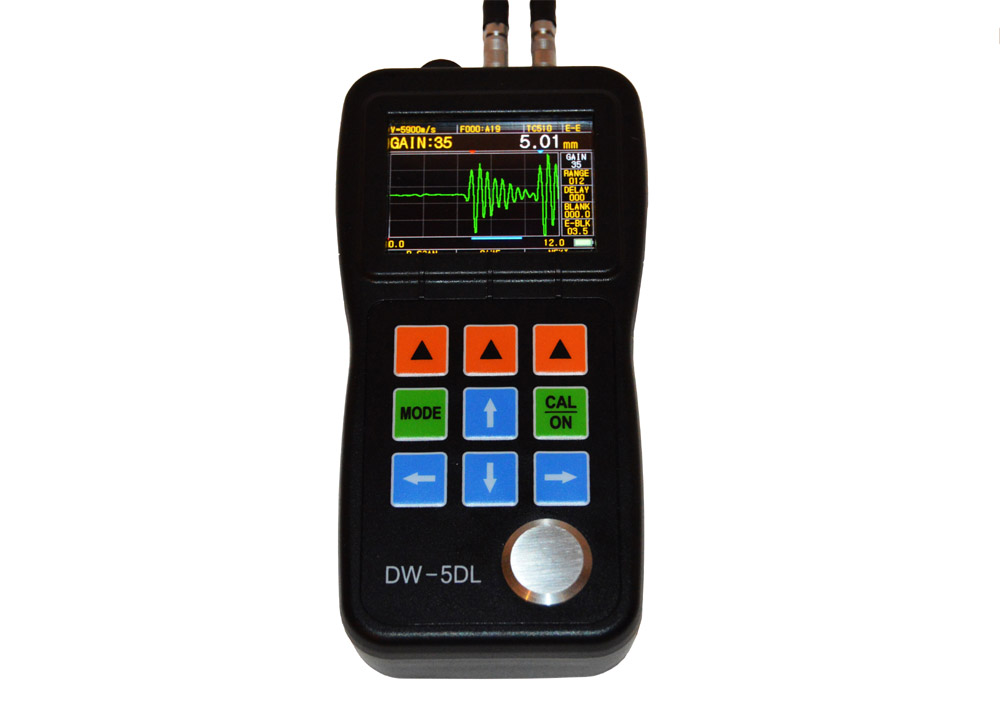

Precision Ultrasonic Thickness Gauge with Live Color, A and B Scan Waveforms,
Through Coating Measuring Capability as well as Data Logger Model: DW-5DL These great and All-In-One feathers allow user to see directly the color waveform of the ultrasonic sound (or A-Scan) on the screen,
a perfect tool to varify the test results, also to check the thickness
through paint / coating without damaging of the surface. DW-5DL has the ability
to store and recall the tests on site from the unit (thickness for 100,000 results and
Waveform format for 1,000 A/B scan data), or use Windows DataView app to
export and further analyse. Highlights:
TC510 probe is used for DW-5DL. The multi-echo is applied to enhance the accuracy with the resolution of 0.0001 inch (0.001mm) and the low limit of 0.010 inch (0.25mm). Color
OLED Screen with superb contract and attractive display presents distinguished showing for the user.
Live A-Scan and B-Scan modes provide DW-5DL an outstanding feature to achieve
realiable results by all means possible.
Measuring range: There are two operating modes
I-E (interface-echo) and E-E mode. The measuring range of I-E mode is 1.50 mm to 18.00 mm (or 0.059 in-0.709 in); and 0.25 mm to 10.00 mm (or 0.012 in-0.394 in) with E-E mode, depending on probe, material and surface condition. Digital resolution: 0.0001in / 0.001in / 0.01in (or 0.001mm / 0.01mm / 0.1mm) if the thickness is less than 0.40 in (10.0 mm) 0.001in / 0.01in (or 0.01mm / 0.1mm) when the thickness is more than or equal to 0.40 in (10.0 mm) Units: Selectable: inch or mm Display: 128 X 64 dot-matrix COLOR LCD screen (1.65in X 2.24in; 42mm X 57mm) EL backlight and switchable contract ratio Measurement update rate: 4 Hz in standard measurement mode 25 Hz in MIN capture mode Material velocity range: 1000 to 9999 m/s; 0.039 to 0.394 inch/us; changeable by 1 m/s Power: Two 1.5V AA alkaline batteries with low battery voltage alarm Operating time: Up to 200 hours (without backlight), depending on operating mode Auto shut-off: After 5 minutes of non-action period Operating temperature: -10C
to +50C or +14F to +122F; available for as low as -20C / -4F on request Size:
5,86in X 2.87in X 1.25in; 149mm X 73mm X 32mm Weight: 200g / 0.44lb (including batteries) Data logger capacity: Up to 500 readings can be saved into 5 files (user-selectable) Standard package:
Optional Items:
Warranty: TWO Year for the tester unit; six month for the probe Picture |
)
)
)
)
)
)
)
