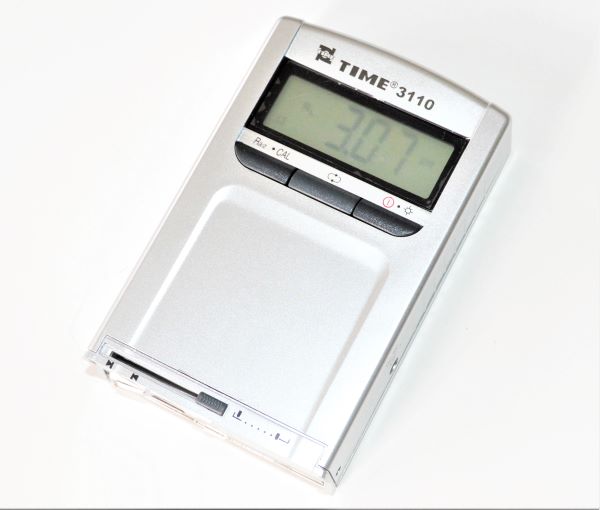

Pocket Sized Surface Roughness Tester - TIME3110 (former TR110)

 Unit Price: US $1199.00

Features:


-Pocket-sized & economically priced
-Large measuring range suitable for most materials
-Measures flat, outer cylinder and sloping surface
-Both Ra and Rz parameters in one instrument
-Features external calibration at keyboard
-Standard conform to ISO and DIN
-Rechargeable batteries, work while charging


Model TIME3110 (Formerly TR110)
Roughness parameter Ra, Rz
Tracing length 6mm
Tracing speed 1.0mm /sec
Cut-off lengths 0.25mm / 0.8mm / 2.5mm
Evaluation length 1.25mm / 4.0mm / 5.0mm
Measuring range Ra: 0.05-10.0μ Rz: 0.1-50μ
Accuracy 15%
Repeatability <12%
Filter RC analogue
Pick-up Piezoelectric
Radius and angle of
the stylus point 		Diamond, Radius : 10 + 2.5μ
Angle: 90 degree (+5 degree or -10 degree )
Operating temperature 0 - 40 C
Relative humidity <80%
Storing temperature -25 C -60 C
Vertilation Grade 3
Power supply 3.6V (2 x NiMh Batteries)
Charger DC 6V
Dimensions (L x W x H) 125 x 73 x 26mm
Weight 200g

Package Contents:

  1. TIME3110 Unit with Built-in Pickup
  2. Calibration Standard with Support Plate
  3. Battery Charger / Power Adaptor
  4. Operation Manual in English
  5. Carrying Case
